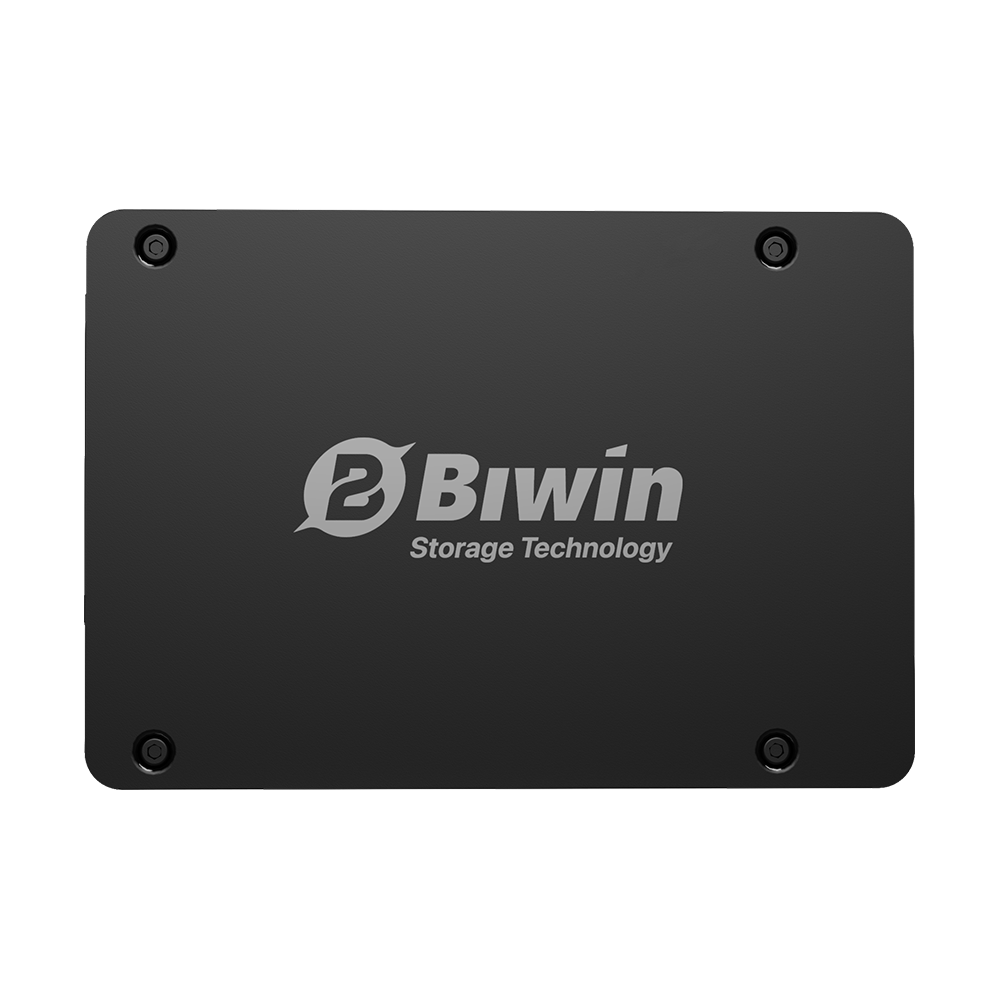

SS831 Enterprise 2.5’’ SSD

Power-Efficient Enterprise SATA 3.2 SSD Optimized for Read-Intensive and Light Mixed Write Workloads

2.5-inch SATA 3.2 Enterprise SSD
Up to 3.84 TB capacity
1 DWPD with PLP & E2E Data Protection
  • Capacity
    480 GB960 GB1.92 TB3.84 TB
  • Flash Type
    eTLC NAND
  • Operating Temperature
    0°C to +70°C

Overview

The BIWIN SS831 Enterprise 2.5” SATA SSD is designed for read-intensive and light mixed-write workloads, combining 1 DWPD endurance with consistent I/O performance, enterprise-grade reliability, and power-efficient operation. Built on the SATA 3.2, a 6 Gbps interface with enterprise-grade eTLC NAND and an external DDR cache, the SS831 provides a balanced storage solution for enterprise environments where predictable performance, data integrity, and operational efficiency are critical.

Available in capacities from 480 GB to 3.84 TB, the SS831 integrates comprehensive data protection, security, power management, and firmware capabilities to support reliable operation and efficient deployment across enterprise storage infrastructure.

  • 01

    Optimized for Read-Intensive Workloads

    With enterprise-grade eTLC NAND and rated for 1 DWPD, the BIWIN SS831 SATA SSD is optimized for read-intensive and light mixed-write workloads. Capacities from 480 GB to 3.84 TB provide deployment flexibility, while its balanced endurance profile helps enterprises align storage resources with workload requirements and cost targets.
  • 02

    Consistent and Reliable I/O Performance

    The SS831 maintains consistent and responsive I/O under sustained enterprise workloads. It delivers sequential read/write speeds of up to 560/520 MB/s and 4K random read/write performance of up to 92K/38K IOPS. With 95% IOPS consistency and read/write latency as low as 120 μs/40 μs, the SS831 provides predictable storage performance for latency-sensitive and mixed read/write applications.
  • 03

    Enterprise-Grade Endurance and Data Protection

    The SS831 integrates Power Loss Protection (PLP), End-to-End Data Protection (E2E), and Internal RAID to help maintain data integrity across the storage path and protect against unexpected power loss. An MTBF of more than 2.5 million hours and an UBER of ≤1 sector per 10¹⁷ bits read further reinforce the reliability required for continuous enterprise operation.
  • 04

    Power-Efficient with Enterprise Security

    With maximum read power consumption of 2.1 W and maximum write power consumption of 2.7 W across capacities, the SS831 is designed for power-efficient operation in large-scale deployments. Power Management and Thermal Throttling help administer power and thermal behavior, while Hot Swap and firmware updates without reset support enterprise maintenance. Secure Boot, secure firmware updates, ATA Security, OCP, OVP, and an anti-sulfuration design provide additional firmware and hardware protection.

  • SATA Revision 3.2

  • ATA/ATAPI Command Set-4

  • S.M.A.R.T.

  • Sanitize

  • Internal RAID

  • Power Loss Protection

  • Hot Swap

  • End-to-End Data Path Protection

  • Intelligent Thermal Throttling

  • Intelligent Power Management

  • OCP

  • OVP

  • Anti-Sulfuration

  • Secure Boot

  • Firmware Update

  • Firmware Update Without Reset

  • ATA Security

  • Enterprise Data Centers

  • Cloud Computing

  • AI & Machine Learning

  • Edge Computing

  • Cloud Infrastructure

  • IoT

Specifications

Latest Update: 2026/09/21
Product Line
SSD
Product Grade
Enterprise
Model Name
SS831
Protocol
SATA 3.2
Interface
2.5"
Flash Type
eTLC
DWPD (Drive Writes Per Day)
1 DWPD
Capacity
480 GB
960 GB
1.92 TB
3.84 TB
Sequential Read (Up to)
560 MB/s
560 MB/s
560 MB/s
560 MB/s
Sequential Write (Up to)
310 MB/s
520 MB/s
520 MB/s
520 MB/s
4K Random Read (Up to)
87K IOPS
88K IOPS
91K IOPS
92K IOPS
4K Random Write (Up to)
17K IOPS
28K IOPS
32K IOPS
38K IOPS
4K Random Read/Write Latency
120μs /40 μs
4K Random Read/Write IOPS Consistency
95%
Read Power Consumption (Max.)
1.9 W
1.9 W
2.0 W
2.1 W
Write Power Consumption (Max.)
2.5 W
2.5 W
2.6 W
2.7 W
Operating Temperature
0°C to +70°C
Storage Temperature
-40°C to +85°C
UBER
≤ 1 sector per10^17 bits read
MTBF
>2,500,000 hours
DWPD (Drive Writes Per Day)
1 DWPD
Certifications
CE, FCC, RoHS, REACH, WEEE, HF, China RoHS
Warranty
5-Year Limited

Order Information

Capacity

480 GB
960 GB
1.92TB
3.84 TB

Part Number

CSE25DE8AK0-480G
CSE25DE8AK0-960G
CSE25DE8AK0-1T9
CSE25DE8AK0-3T8

Power Loss Protection

Firmware-Based, Hardware-Based
Firmware-Based, Hardware-Based
Firmware-Based, Hardware-Based
Firmware-Based, Hardware-Based
1. Tested by BIWIN labs. Actual performance may vary due to systems, devices, or environment.
2. Maintenance and future updates are required throughout the product lifecycle. Specifications are subject to change without notice.
3. The pictures are for illustration only. Actual products may vary due to product enhancements or changes.
4. Not all products are sold in all regions of the world.
5. As used for storage capacity, one megabyte (MB)= one million bytes, one gigabyte (GB) = one billion bytes, and one terabyte (TB) = one trillion bytes. Total accessible capacity varies depending on the operating environment. As used for buffer or cache, one megabyte (MB) = 1,048,576 bytes. As used for transfer rate or interface, megabyte per second (MB/s) = one million bytes per second, and gigabyte per second (GB/s) = one billion bytes per second.
6. MTBF = Mean Time Between Failures based on internal testing using the Telcordia stress testing standard.
7. Please visit www.biwintechnology.com for warranty details in your region.
8. For more information, please contact sales@biwintech.com.
