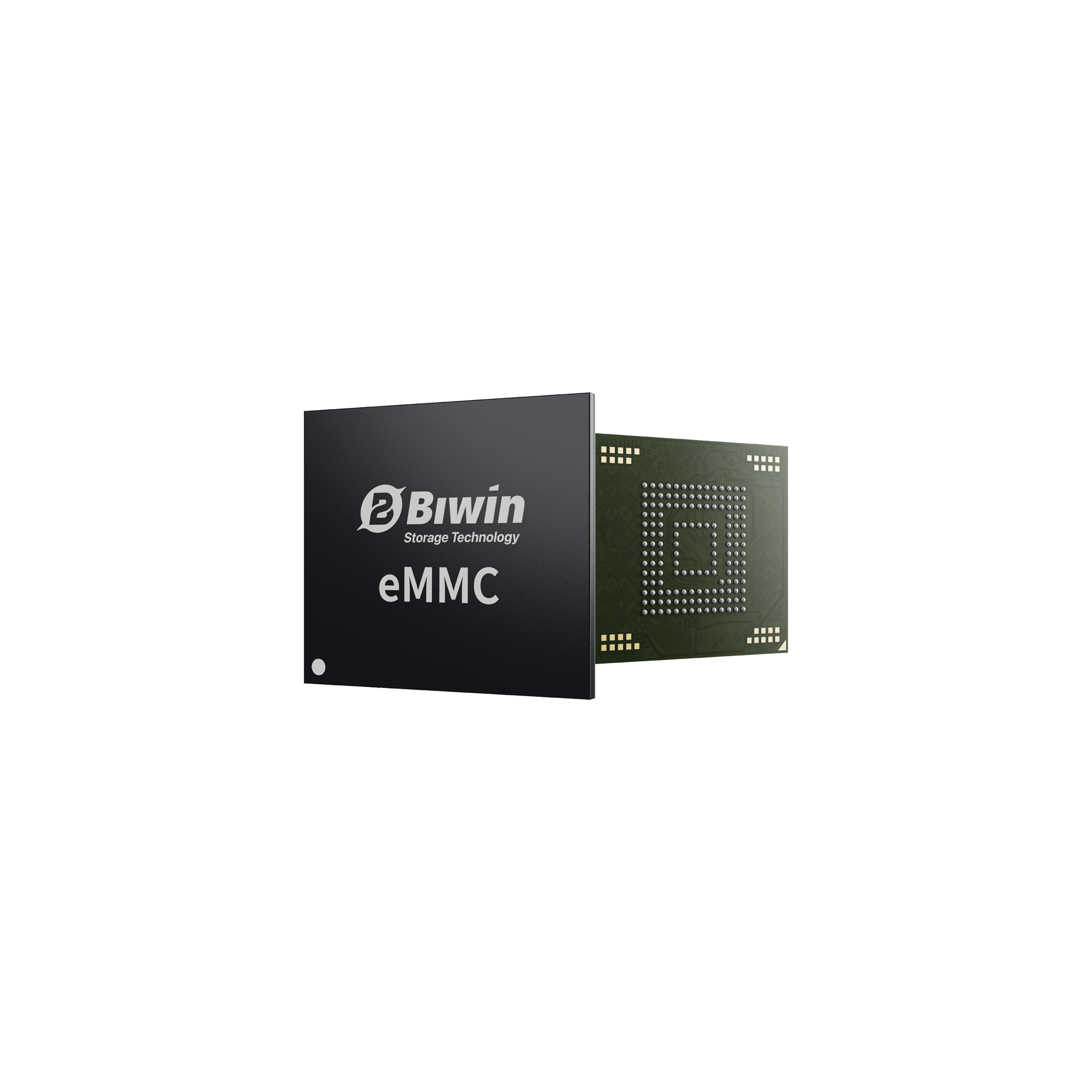

TGE208 eMMC 5.1

Industrial eMMC Designed for Reliable Operation, Extreme Environments, and Long-Term Stability

-40°C to 85°C Industrial Reliability
Stable Throughput with Direct Write
Firmware with FFU Support
  • Capacity
    32 GB64 GB128 GB
  • Flash Type
    3D TLC
  • Operating Temperature
    -40°C to +85°C

Overview

BIWIN TGE208 eMMC 5.1 integrates an industrial controller with premium TLC NAND for applications in mission-critical sectors (such as power or utilities) requiring exceptional reliability, superior read/write performance, and long-term stability. It supports an extended industrial temperature range of -40°C to +85°C for dependable operation even under extreme conditions.
The TGE208 uses the FBGA 153 ball package and adheres to the eMMC 5.1 standard, supporting HS400 high-speed mode to deliver optimal read/write performance. It includes essential features such as FFU (Field Firmware Upgrade), Boot Partition, RPMB (Replay Protected Memory Block), and idle data acceleration, providing comprehensive functionality for enterprise-level applications. With customizable options, extended product lifecycle and reliable supply chain, the TGE208 is ideal for even the most robust industrial deployments.
Leveraging TLC Direct Write technology, the TGE208 increases storage density, reduces overall costs, and ensures consistent high-speed and stable data transmission. Its wide compatibility with various devices makes it a versatile solution meeting the extensive data storage needs across diverse industrial sectors.

  • 01

    High Efficiency and Rapid Response

    The BIWIN TGE208 uses TLC Direct Write technology to increase storage density and reduce overall system cost while maintaining consistent high speeds and stable data transfer. Its broad compatibility with a wide range of devices supports seamless integration into diverse industrial platforms, making it suitable for high-throughput and data-intensive applications.
  • 02

    Wide-Temperature Range for Reliable Performance

    The BIWIN TGE208 is engineered to withstand the demanding conditions of industrial environments, operating reliably within a wide temperature range of -40°C to 85°C. With consistent and stable performance even in the harshest of conditions, including extreme cold and heat, TGE208 is a reliable solution for continuous operation in critical applications.
  • 03

    Industrial-Grade Quality for Long-Term Stability

    The TGE208 is equipped with an industrial-grade controller and premium TLC/MLC NAND flash, specifically designed to perform under demanding conditions. In environments with fluctuating power or extreme conditions, the TGE208 maintains data reliability and consistent read/write performance throughout the device lifecycle.
  • 04

    Customizable Options to Meet Specific Needs

    The BIWIN TGE208 eMMC 5.1 offers flexible customization options, allowing users to further tailor product performance based on their unique requirements. This adaptability caters to diverse applications (such as power systems, surveillance devices, and other embedded applications) while maintaining compliance with industrial standards and reliability expectations.

  • Bad Block Management

  • Power Loss Protection

  • Global Wear Leveling

  • RPMB Partition

  • FFU

  • ECC

  • Industrial Automation

    Industrial Automation

  • Industrial Robot

    Industrial Robot

  • Security Surveillance

    Security Surveillance

  • Intelligent Transportation

    Intelligent Transportation

  • Power Equipment

    Power Equipment

  • IoT

    IoT

  • Financial and Retail Device

    Financial and Retail Device

  • Smart Healthcare

    Smart Healthcare

Specifications

Latest Update: 2025/08/30
Product Line
Embedded
Product Grade
Industrial Wide-temp
Model Name
TGE208
eMMC Standard
eMMC 5.1
Flash Type
3D TLC
Capacity
32 GB
64 GB
128 GB
Sequential Read (Up to)
320 MB/s
Sequential Write (Up to)
230 MB/s
Operation Current (Max.)
120 mA
Standby Current (Max.)
100 μA
Dimensions
11.50 x 13.00 x 1.10 mm
Packaging
FBGA 153 Ball
Operating Temperature
-40°C to +85°C
Storage Temperature
-40°C to +85°C
Endurance
3000 P/E cycles
MTBF
>3,000,000 hours
Certifications
RoHS, REACH
Warranty
3-Year Limited

Order Information

Capacity

32 GB
64 GB
128 GB

Part Number

BWEFMI032GN2RJ
BWEFMI064GN223
BWEFMI128GN223

Power Loss Protection

Firmware-Based
Firmware-Based
Firmware-Based
1. Tested by BIWIN labs. Actual performance may vary due to systems, devices, or environment.
2. Maintenance and future updates are required throughout the product lifecycle. Specifications are subject to change without notice.
3. The pictures are for illustration only. Actual products may vary due to product enhancements or changes.
4. Not all products are sold in all regions of the world.
5. As used for storage capacity, one megabyte (MB)= one million bytes, one gigabyte (GB) = one billion bytes, and one terabyte (TB) = one trillion bytes. Total accessible capacity varies depending on the operating environment. As used for buffer or cache, one megabyte (MB) = 1,048,576 bytes. As used for transfer rate or interface, megabyte per second (MB/s) = one million bytes per second, and gigabyte per second (GB/s) = one billion bytes per second.
6. MTBF = Mean Time Between Failures based on internal testing using the Telcordia stress testing standard.
7. Please visit www.biwintechnology.com for warranty details in your region.
8. For more information, please contact sales@biwintech.com.
