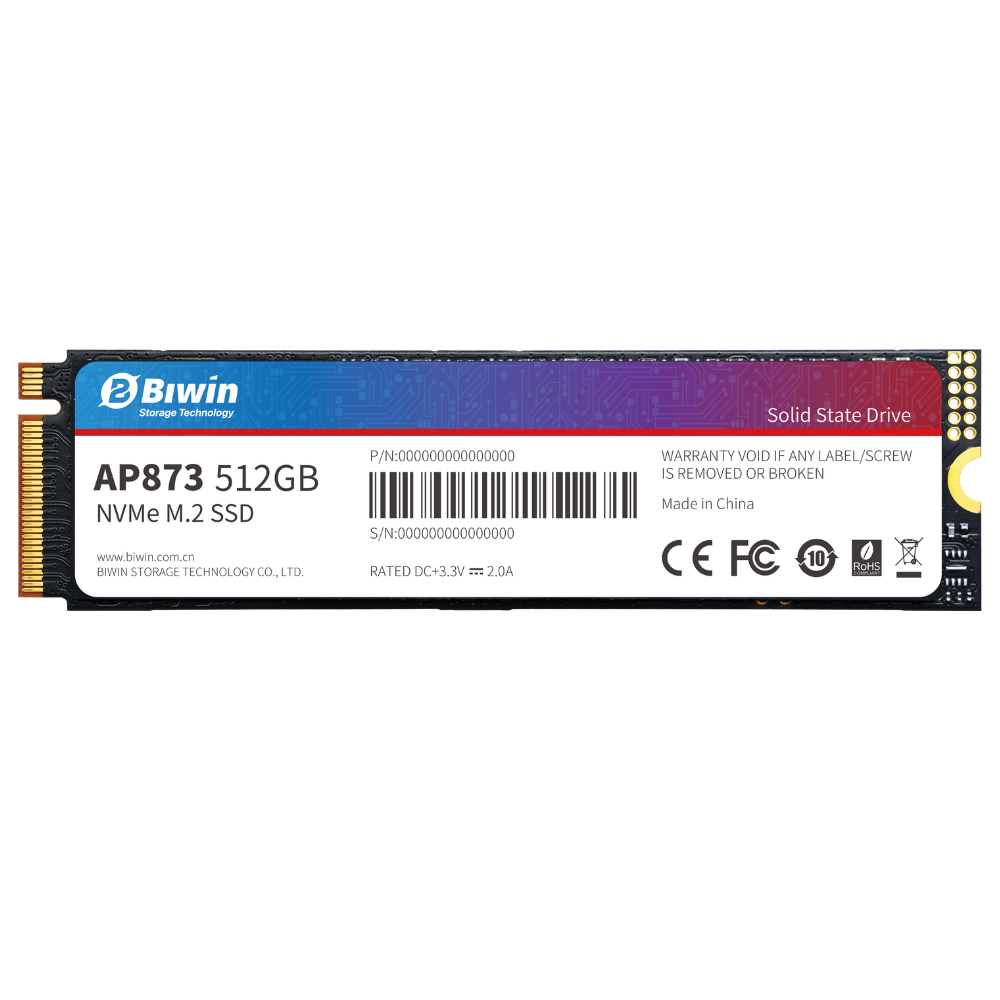

AP873 SSD

BIWIN AP873, Ultra-Fast Gen4x4 SSD With NVMe 2.0, Read/Write Up To 7000/6200 MB/s

PCIe Gen4×4, NVMe 2.0
Up To 7000 MB/s Read and 6200 MB/s Write
Lower Power Consumption
  • Capacity
    512 GB1 TB2 TB
  • Flash Type
    3D TLC
  • Operating Temperature
    0 °C to +70 °C

Overview

Powered by a high-performance controller and 3D TLC NAND flash, the BIWIN AP873 SSD leverages the PCIe Gen4×4 interface and NVMe 2.0 protocol to deliver exceptional speeds up to 7000 MB/s. and 6200 MB/s. Optimized through both hardware and firmware, this SSD delivers exceptional performance and power efficiency. With the M.2 2280 form factor and capacities ranging from 512 GB to 2 TB, the AP873 is tailored to meet the storage needs of a variety of computing devices such as PCs and desktops, offering both excellent responsiveness and rapid load times for optimal workflow and productivity.

  • 01

    Experience Faster Data Access

    The BIWIN AP873 features the PCIe Gen4x4 interface with read speeds up to 7000 MB/s and write speeds up to 6200 MB/s. Designed for high-performance systems, it offers ultra-fast data transfer speeds to meet the storage demands of data-driven applications, boosting performance and efficiency.
  • 02

    Efficient Thermal Control

    Featuring a single-sided NAND architecture, the BIWIN AP873 incorporates an advanced temperature regulation algorithm that dynamically adjusts heat dissipation. The SSD stays within safe temperature ranges, preventing overheating, reducing system failures, and allowing for stable, consistent performance throughout demanding operations.
  • 03

    Lower Power Consumption

    The BIWIN AP873 integrates advanced power management with NVMe power-saving technology, offering precise control over energy consumption. This ensures ultra-low power usage, supporting longer operational times and better overall efficiency for devices.
  • 04

    Key Technologies for Stability

    The BIWIN AP873 uses technologies (including dynamic/static wear leveling, TRIM command, intelligent thermal throttling, garbage collection, and data erasure) to deliver outstanding performance and durability. This robust data management guarantees reliable and efficient storage solutions for demanding applications.
  • 05

    Reliability and Durability

    The BIWIN AP873 is built with high-quality flash memory chips and is rigorously tested for electrical, application, and compatibility reliability. With a 3-year warranty and technical support, this SSD provides dependable, long-lasting performance, offering customers peace of mind with comprehensive service and support.

  • Modern Standby

  • ATA Encryption

  • End-to-End Data Protection

  • S.M.A.R.T.

  • Garbage Collection

  • TRIM Command

  • Dynamic/Static Wear Leveling

  • In-drive RAID

  • Bad Block Management

  • Read Scrub

  • SLC Cache Acceleration

  • Intelligent Thermal Throttling

  • ESD Protection

  • Read Disturbance

  • Firmware Update

  • Desktop

    Desktop

  • Laptop

    Laptop

  • Tablet

    Tablet

  • All-in-One PC

    All-in-One PC

  • Thin Client

    Thin Client

  • Mini PC

    Mini PC

Specifications

Latest Update: 2025/12/22
Product Line
SSD
Product Grade
Consumer
Model Name
AP873
Interface
PCIe Gen4×4, NVMe 2.0
Form Factor
M.2 2280
Flash Type
3D TLC
Firmware
SLC Cache
DRAM Cache
DRAM-less
Capacity
512 GB
1 TB
2 TB
Sequential Read (Up to)
7000 MB/s
Sequential Write (Up to)
6200 MB/s
Random Read 4K (Up to)
900K IOPS
Random Write 4K (Up to)
900K IOPS
Read Power Consumption (Max.)
5.2 W
Write Power Consumption (Max.)
5.5 W
Idle Power Consumption (Max.)
50 mW
Dimensions
22.00±0.15 x 80.00±0.15 x 2.83 (Max.) mm
Operating Temperature
0°C to +70°C
Storage Temperature
-40°C to +85°C
MTBF
>1,500,000 hours
Certifications
CE, FCC, RoHS, HF, REACH
Warranty
3-Year / 500 TBW

Order Information

Capacity

512 GB
1 TB
2 TB

Part Number

CE980TH8900-512
CE980TH8900-1TB
CE980TH8900-2TB
1. Tested by BIWIN labs. Actual performance may vary due to systems, devices, or environment.
2. Maintenance and future updates are required throughout the product lifecycle. Specifications are subject to change without notice.
3. The pictures are for illustration only. Actual products may vary due to product enhancements or changes.
4. Not all products are sold in all regions of the world.
5. As used for storage capacity, one megabyte (MB)= one million bytes, one gigabyte (GB) = one billion bytes, and one terabyte (TB) = one trillion bytes. Total accessible capacity varies depending on the operating environment. As used for buffer or cache, one megabyte (MB) = 1,048,576 bytes. As used for transfer rate or interface, megabyte per second (MB/s) = one million bytes per second, and gigabyte per second (GB/s) = one billion bytes per second.
6. MTBF = Mean Time Between Failures based on internal testing using the Telcordia stress testing standard.
7. Please visit www.biwintechnology.com for warranty details in your region.
8. For more information, please contact sales@biwintech.com.
