Tailored for high-definition, multi-channel video surveillance applications, the BIWIN TDC200 Industrial SD cards & microSD cards combine reliability with advanced firmware algorithms designed for multi-channel writing optimization. These cards offer stable, continuous writing speeds and come with enhanced physical designs and reliability standards. With temperature operation support ranging from -25°C to +85°C, and protective features (waterproof, dustproof, shock resistant, X-ray proof, and anti-magnetic interference, they are built to handle the most demanding tasks in vehicle surveillance, security systems, industrial inspections, medical monitoring, and other high-intensity data writing scenarios.

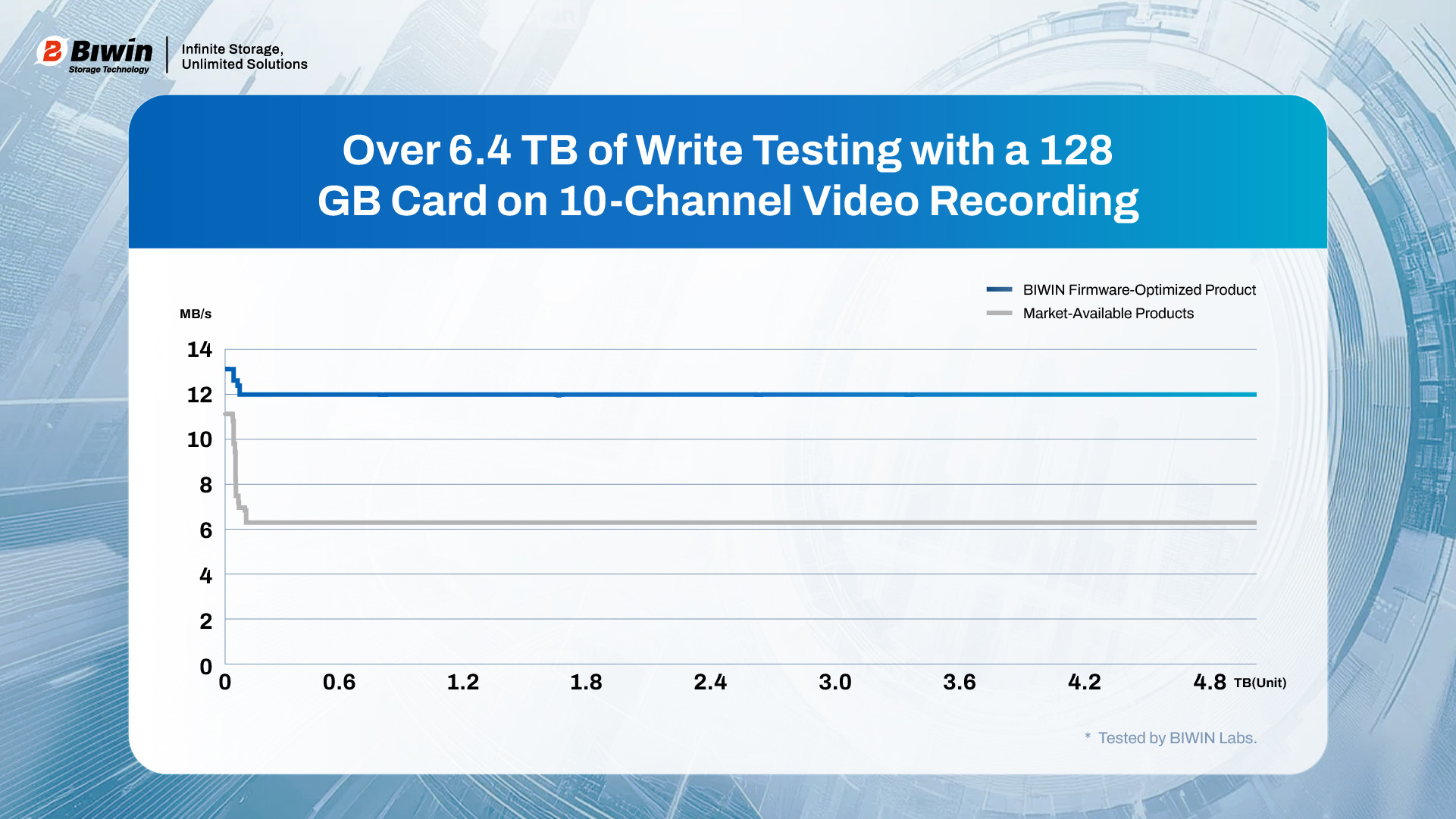

The TDC200 SD cards & microSD cards use intelligent data segmentation technology to differentiate between video stream and system data, storing them in separate partitions to optimize data structure and reduce fragmentation. This reduces wear from garbage collection (GC) when the card is nearly full, extending its lifespan. Additionally, the built-in intelligent caching management system minimizes wear from frequent access, ensuring consistent reliability and stability during high-load, continuous writing operations. It supports up to 10 channels of 4K video recording, providing 24/7 stable writing and ensuring smooth, uninterrupted footage for security surveillance and recording applications.

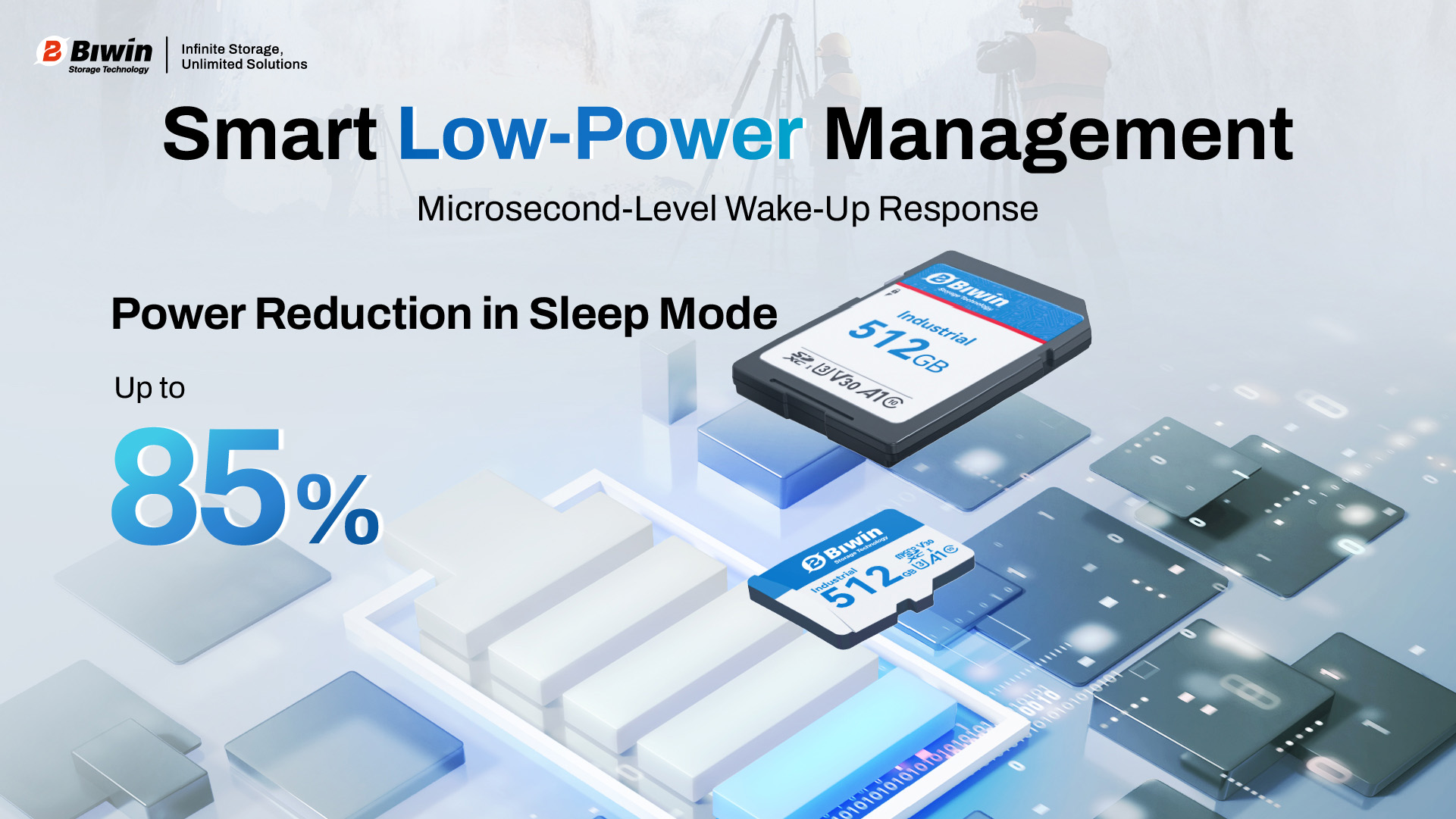

The TDC200 SD cards & microSD cards feature advanced low-power management technology. When the host system isn’t performing read/write operations, the card automatically switches to a low-power state, reducing energy consumption from milliamps (mA) to microamps (μA) and cutting power use by up to 85% in sleep mode. This feature extends battery life, especially in power-sensitive applications like body-worn cameras and portable monitoring systems which require minimal energy consumption. The product also supports microsecond-level wake-up response when the device is in use again.

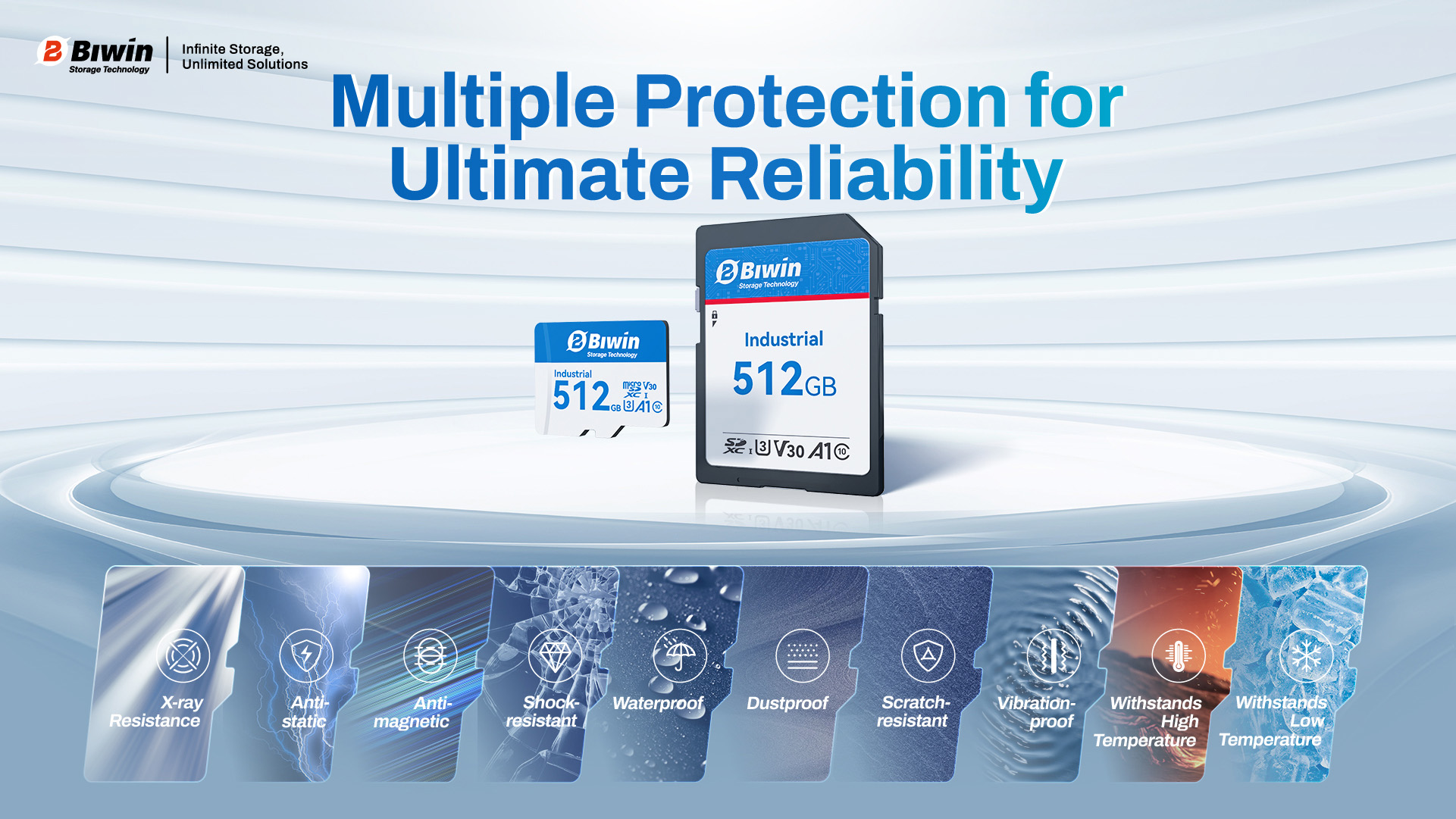

In industrial and vehicle applications, devices face challenges like drops, collisions, vibrations, and extreme temperatures. The BIWIN TDC200 memory cards are built with a robust physical structure, operating stably within a temperature range of -25°C to +85°C. They feature shock resistance, waterproofing, dustproofing, and protection against X-ray and magnetic field interference, preventing circuit short circuits and signal failures. The products have passed rigorous reliability testing, with an average mean time between failures (MTBF) of 3 million hours, reducing maintenance costs and minimizing downtime.

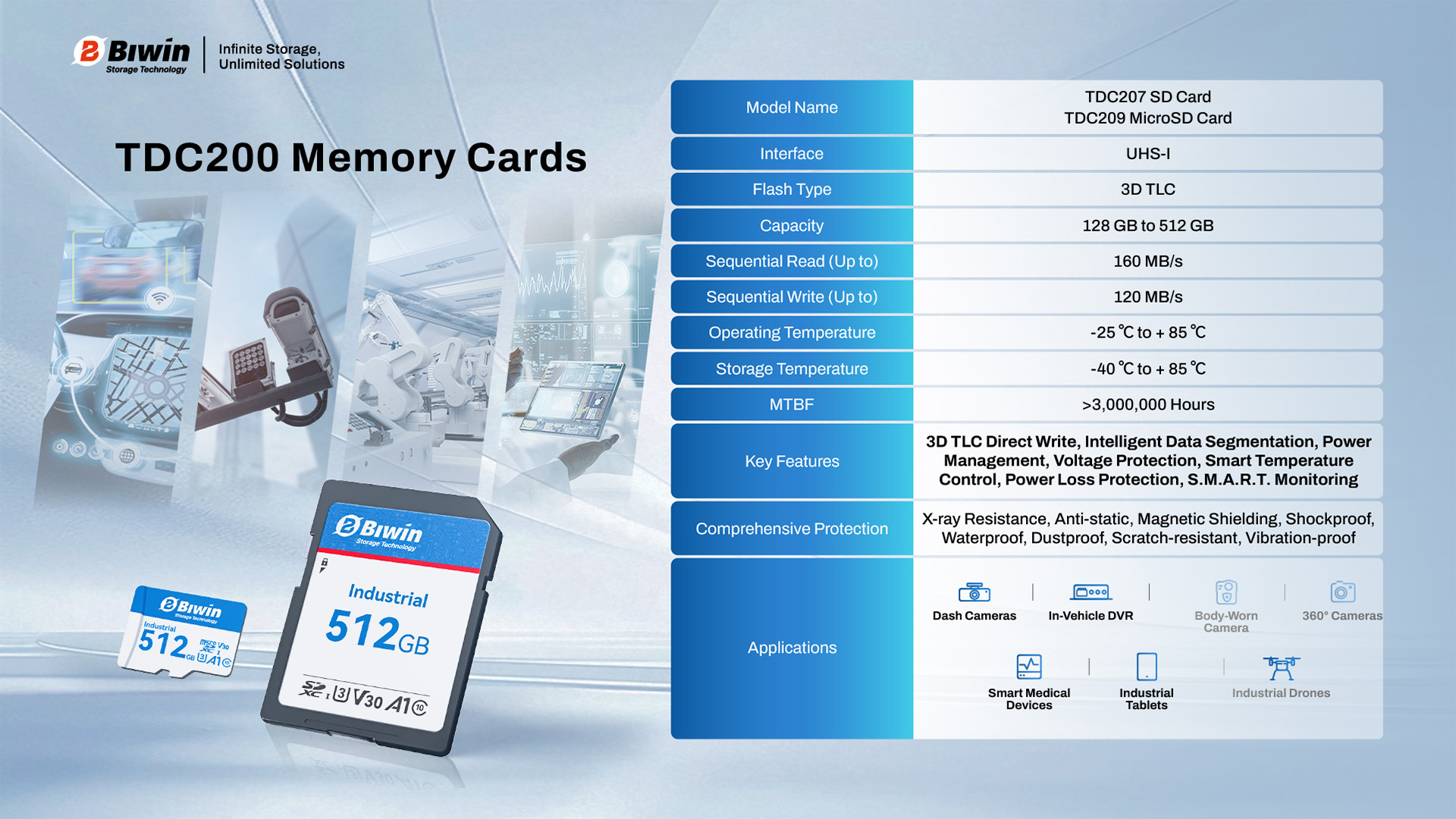

The TDC200 Series SD cards & microSD cards use 3D TLC direct write technology and integrate several optimization strategies, such as VDT voltage monitoring, S.M.A.R.T. monitoring, power loss protection, intelligent temperature control, and enhanced error correction algorithms. VDT and S.M.A.R.T. allow for early life warnings and status feedback, helping identify potential risks ahead of time. The smart temperature control and data retention strategies ensure data security in high-temperature environments, preventing errors, and maintaining data stability over extended periods. These features enhance the card’s reliability and durability under demanding conditions for critical applications.
In high-concurrency data writing scenarios like multi-channel surveillance or video recording, the BIWIN TDC200 Industrial SD cards and microSD cards provide exceptional stability and performance. They ensure smooth, uninterrupted video recording without frame drops or stuttering. The products’ shockproof and vibration-resistant features make them the ideal storage solution for applications with high data integrity requirements, such as dash cams, in-vehicle DVRs, body-worn cameras, 360° cameras, smart medical devices, industrial tablets, and industrial drones.
