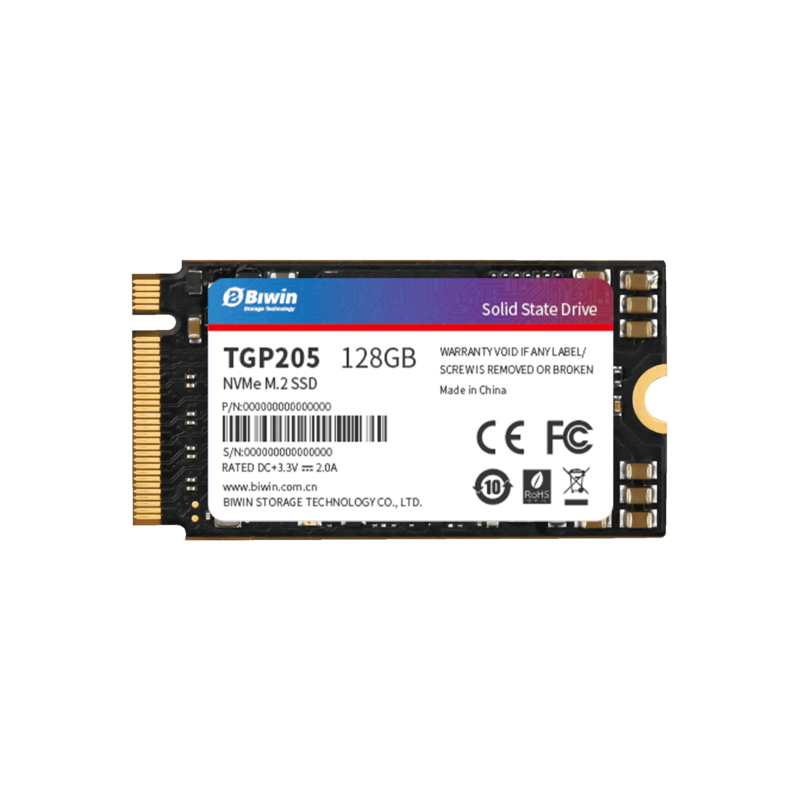

TGP205 SSD

Industrial PCIe Gen3x4 SSD Engineered for Harsh Conditions and Extended Temperature Range

PCIe Gen3x4, NVMe 1.4
Up to 3400 MB/s Read
Wide-Temperature Operation
  • Capacity
    32 GB64 GB128 GB256 GB512 GB
  • Flash Type
    Industrial 3D TLC
  • Operating Temperature
    -40℃ to +85℃

Overview

BIWIN TGP205 SSD, engineered for industrial-grade applications, delivers high reliability and performance in sectors including industrial control, rail transportation, and data communications. It is ideal for key systems such as automation equipment, subway gate systems, and communication base stations.

Built with an M.2 2280 form factor, PCIe Gen3x4 interface, and NVMe 1.4 protocol, the TGP205 offers sequential read speeds up to 3400 MB/s and write speeds up to 2800 MB/s for efficient data processing. Available in capacities from 32 GB to 512 GB, this SSD can operate across a wide temperature range of -40℃ to 85℃, providing stability in extreme environments.

The TGP205 adheres to BIWIN’s rigorous industrial standards, ensuring exceptional reliability. It also includes power-loss protection, safeguarding data during unexpected power outages. Additionally, the TGP205 offers customizable features such as conformal coating, underfill/sidefill, and anti-sulfurization protection, providing a comprehensive choice of solutions for industrial applications requiring high security, durability, and long-term performance.

  • 01

    High-Speed Data Transfer with PCIe Gen3x4

    The TGP205 uses a high-performance PCIe Gen3x4 interface, compliant with NVMe 1.4. It delivers sequential read speeds up to 3400 MB/s and write speeds up to 2800 MB/s, with random read/write performance reaching 260K/210K IOPS.
  • 02

    Stable Operation Across Wide Temperature Ranges

    With BIWIN’s advanced manufacturing process, the TGP205 ensures the flash memory, controller, and components perform stably within a wide temperature range of -40℃ to +85℃. Paired with proprietary firmware-based thermal optimization, it offers stable performance even in extreme industrial conditions.
  • 03

    Dual Power-Loss Protection for Enhanced Stability

    BIWIN TGP205 features both firmware-based and hardware-based power loss protection for more stable power management. In the event of unexpected power interruptions, the TGP205 allows additional time to store volatile data, protecting data integrity and minimizing any risk of data loss.
  • 04

    Extended Lifespan with Advanced Technologies

    Supporting features including dynamic/static wear leveling, bad block management, TRIM, and garbage collection, the TGP205 provides optimal use of the NAND flash and significantly enhances product durability.
  • 05

    Rigorous Testing for Premium Reliability

    The BIWIN TGP205 undergoes stringent testing, including “Double 85” (85℃ high temperature and 85% high humidity test), rapid temperature cycling (10℃/min), high/low-temperature stress testing, and anti-sulfuration G3 standards. With an MTBF of more than 3 million hours, it features exceptional reliability.
  • 06

    Customizable Solutions for Specialized Needs

    The TGP205 offers custom services such as conformal coating, sidefill/underfill, anti-sulfurization protection, and metal/graphene heatsinks, significantly enhancing reliability and durability under specific application requirements.

  • Power Loss Protection

  • S.M.A.R.T.

  • Online Firmware Update

  • End-to-End Data Protection

  • Data Erasure

  • Garbage Collection

  • Dynamic/Static Wear Leveling

  • TRIM Command

  • Bad Block Management

  • Intelligent Thermal Throttling

  • Network Communications

    Network Communications

  • Industrial Automation

    Industrial Automation

  • Security Surveillance

    Security Surveillance

  • Rail Transportation

    Rail Transportation

  • Smart Energy

    Smart Energy

Specifications

Latest Update: 2025/08/03
Product Line
SSD
Product Grade
Industrial Wide-temp
Model Name
TGP205
Interface
PCIe Gen3x4, NVMe 1.4
Form Factor
M.2 2242
Flash Type
Industrial 3D TLC
Firmware
TLC Direct Write
DRAM Cache
DRAM-less
Capacity
32 GB
64 GB
128 GB
256 GB
512 GB
Sequential Read (Up to)
3400 MB/s
Sequential Write (Up to)
2800 MB/s
Random Read 4K (Up to)
260K IOPS
Random Write 4K (Up to)
210K IOPS
Read Power Consumption (Max.)
1.48 W
Write Power Consumption (Max.)
2.24 W
Idle Power Consumption (Max.)
48 mW
Dimensions
22.00 x 42.00 x 3.60 mm
Operating Temperature
-40°C to +85°C
Storage Temperature
-55°C to +95°C
Endurance
3000 P/E cycles
MTBF
>3,000,000 hours
Certifications
CE, FCC, RoHS, HF, REACH
TBW (Up to)
500 TBW
Warranty
5-Year Limited

Order Information

Capacity

128 GB
256 GB
512 GB
32 GB
64 GB
128 GB
256 GB
512 GB

Part Number

TG42G12830Y0TP0
TG42G25630Y0TP0
TG42G51230Y0TP0
TG42G03230Y0T
TG42G06430Y0T
TG42G12830Y0T
TG42G25630Y0T
TG42G51230Y0T

Power Loss Protection

Hardware + Firmware-Based
Hardware + Firmware-Based
Hardware + Firmware-Based
Firmware-Based
Firmware-Based
Firmware-Based
Firmware-Based
Firmware-Based
1. Tested by BIWIN labs. Actual performance may vary due to systems, devices, or environment.
2. Maintenance and future updates are required throughout the product life cycle. Specifications are subject to change without notice.
3. The pictures are for illustration only. Actual products may vary due to product enhancements or changes.
4. Not all products are sold in all regions of the world.
5. As used for storage capacity, one megabyte (MB)= one million bytes, one gigabyte (GB) = one billion bytes, and one terabyte (TB) = one trillion bytes. Total accessible capacity varies depending on the operating environment. As used for buffer or cache, one megabyte (MB) = 1,048,576 bytes. As used for transfer rate or interface, megabyte per second (MB/s) = one million bytes per second, and gigabyte per second (GB/s) = one billion bytes per second.
6. MTBF = Mean Time Between Failures based on internal testing using the Telcordia stress testing standard.
7. Please visit www.biwintechnology.com for warranty details in your region.
8. For more information, please contact sales@biwintech.com.
