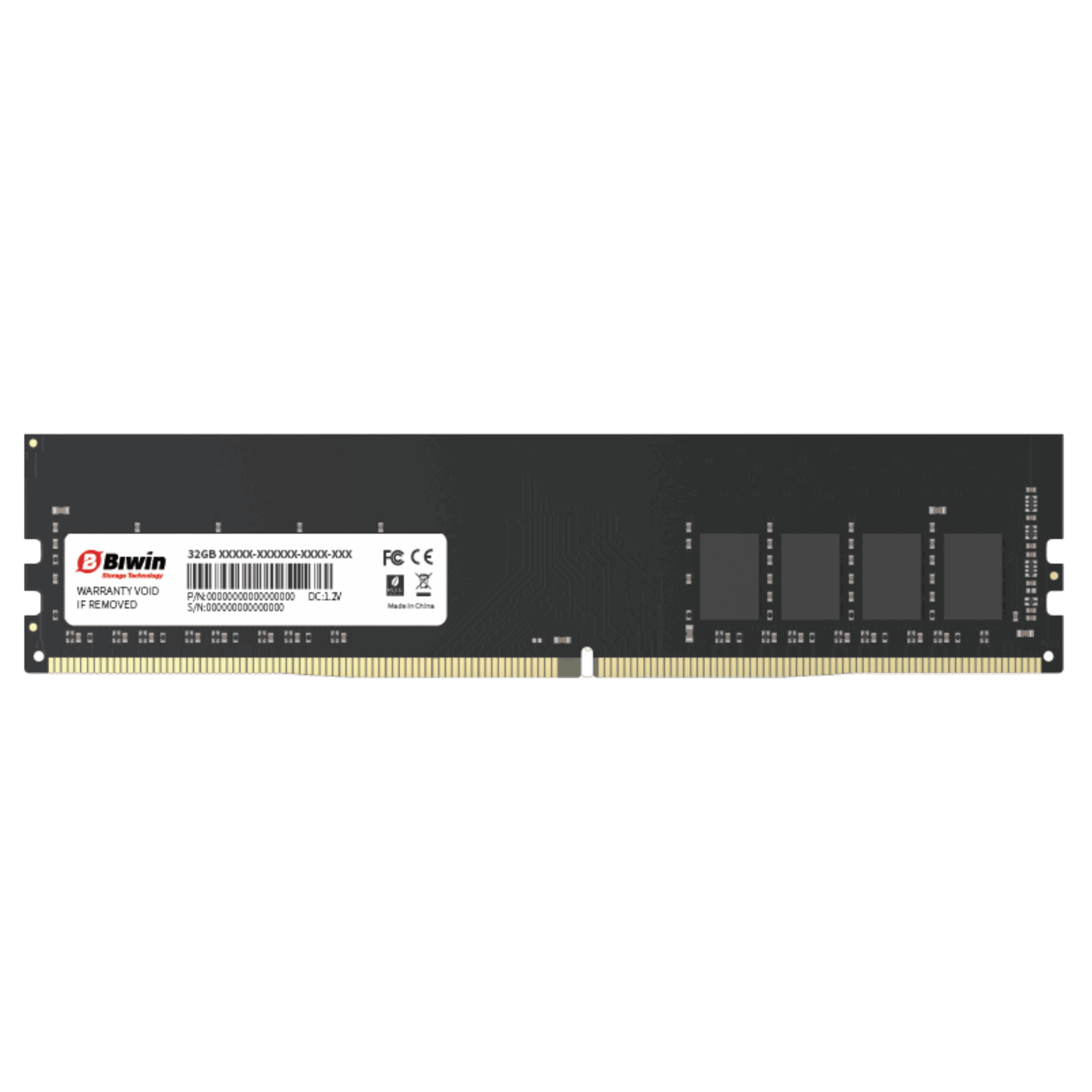

DDR4 UDIMM

High-Stability DDR4 UDIMM With Low Power Consumption, Custom Options, and Platform Compatibility

Data Rate Up to 3200 MT/s
Low Power Consumption
Broad Compatibility
  • Capacity
    4 GB8 GB16 GB32 GB
  • Data Rate
    2666 MT/s3200 MT/s
  • Operating Temperature
    0°C to +85°C

Overview

BIWIN DDR4 UDIMM delivers data transfer rates up to 3200 MT/s with capacities from 4 GB to 32 GB. It operates at a low voltage of 1.2 V. Built with quality components and fully compliant with JEDEC standards, this module offers excellent compatibility and long-term stability across major systems. It supports an operating temperature range of 0°C to +85°C, making it well-suited for deployment in devices including desktops, workstation PCs, and all-in-one PCs.

  • 01

    High-Quality Components for Long-Term Stability

    BIWIN DDR4 UDIMM is built with high-quality components for long-term stability. It delivers data transfer rates up to 3200 MT/s, providing reliable performance under sustained workloads.
  • 02

    Customizable for Specialized Applications

    To meet the requirements of specific environments, BIWIN offers multiple customization options, including anti-sulfuration protection, optional gold finger plating thickness adjustments, and other application-specific enhancements. These features improve durability and extend the product's lifespan in demanding or specialized conditions.
  • 03

    Enhanced Stability and Broad Compatibility

    Built with premium components after rigorous validation, BIWIN DDR4 UDIMM provides stable performance over time. The UDIMM is fully JEDEC-compliant and tested for compatibility with major chipsets, including Intel and AMD.

  • Underfill

  • Sidefill

  • 30μ" Gold Finger

  • Anti-Sulfuration

  • Desktop

    Desktop

  • All-in-One PC

    All-in-One PC

  • Workstation PC

    Workstation PC

Specifications

Latest Update: 2025/09/27
Product Line
DRAM Module
Product Grade
Consumer
Model Name
DDR4 UDIMM
DIMM Type
DDR4 UDIMM
Capacity
4 GB
8 GB
16 GB
32 GB
Data Rate
2666 MT/s, 3200 Mbps
Pin
288 Pin
Voltage
1.2 V
PCB Gold Finger Thickness
3 µ" / 30 µ"
Anti-Sulfuration Protection
Customizable
Dimensions
133.35 x 31.25 x 3.90 mm
Operating Temperature
0°C to +85 °C
Storage Temperature
-55°C to +100°C
Certifications
RoHS, CE, FCC
Warranty
3-Year Limited
1. Tested by BIWIN labs. Actual performance may vary due to systems, devices, or environment.
2. Maintenance and future updates are required throughout the product lifecycle. Specifications are subject to change without notice.
3. The pictures are for illustration only. Actual products may vary due to product enhancements or changes.
4. Not all products are sold in all regions of the world.
5. Please visit www.biwintechnology.com for warranty details in your region.
6. For more information, please contact sales@biwintech.com.
